Flat Optics
Sapphire ceramic China is a leading manufacturer of a wide variety of flat optics used in the Medical, Laser, Security, Defense, Aerospace, Sensors and Process Control industries. Components include windows, filters, sight glass, optical wedges, precision tooling and reticles.
Materials & Coatings
When choosing a flat optics component from Sapphire ceramic China, you’ll have the benefit of many value-adding services, including guidance to the best available substrate materials, precision glass machining and polishing to achieve the exact required dimensions and the option for numerous thin film coatings. Our machining, polishing, and grinding capabilities regularly achieve flatness of 1/10 wave or better, along with parallelism of .00003” over a 9+” substrate.
Flat Optics

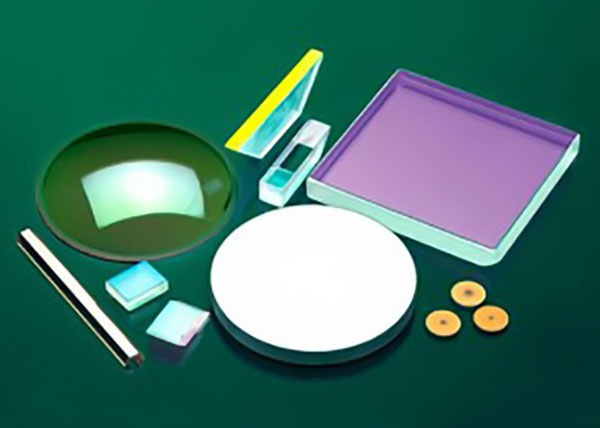

Optical Filters
Sapphire ceramic China custom manufactures optical filters that expand the applications and improve the capabilities of almost any optical component. SCCL works with a variety of filter glass materials from all the leading filter glass manufacturers: Schott, Kopp, Ohara, Hoya and others. Sapphire ceramic China also has the capability to apply thin-film optical coatings, from UV through IR spectrum.

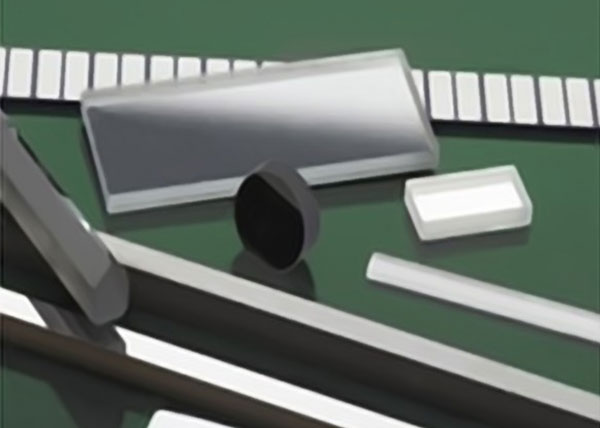

Mirrors
Sapphire ceramic China manufactures first surface and second surface flat mirrors and laser mirrors that are used for interferometry, beam steering or folding, and many optical components within imaging systems. Our optical mirrors are completely customizable to meet our clients’ needs. From a basic protected aluminum through High laser damage threshold mirrors, SCCL will certify the performance and specifications with whatever data you require.

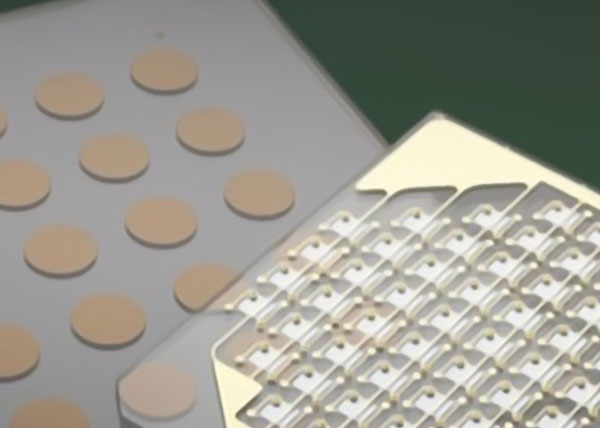

Pattern Coatings
Patterned coatings, or masks, can be applied to a wide variety of substrates for use as filters, reference gauges, datums or whatever your needs might be. Chrome, precious metals, and aluminum are among the more common coating materials Sapphire ceramic China works with regularly.

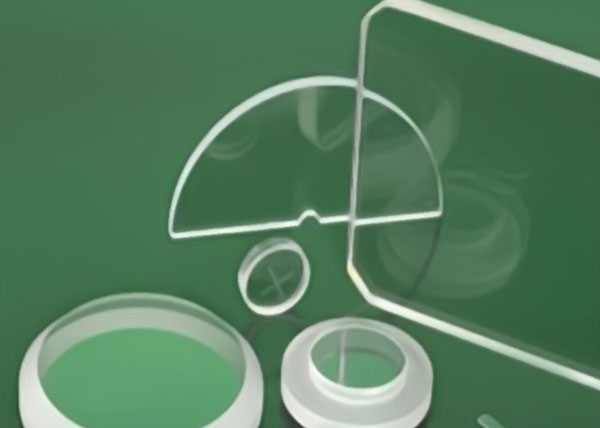

Windows
Optical windows are flat, plane-parallel plates often used to protect work areas, sensitive components, electronic sensors, and detectors from stray light or damage. Sapphire ceramic China manufactures ultraviolet windows, visible windows, infrared windows, and debris shields from .100″ to 16″ in height and in thicknesses of .008″ to 4″ using a wide spectrum of materials, including nBK-7, B270, borosilicate glass, F-5, fused silica, fused quartz, high-index glass, sapphire, silicon and other IR materials.

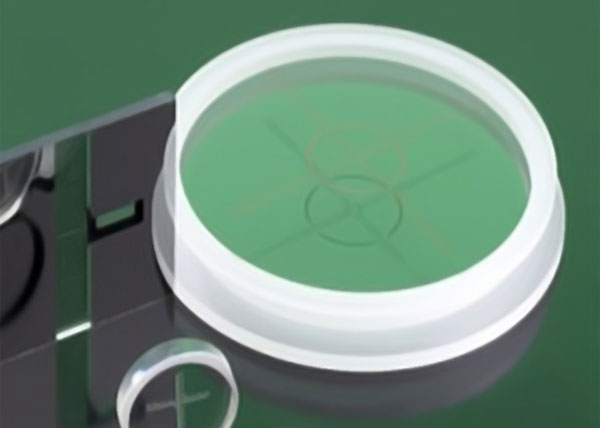

Reticles
Sapphire ceramic China has skilled staff on call that produce leading edge reticles for the semiconductor, inspection and medical industries. Details down to sub-micron line widths are available on a number of substrate materials.
